DS-KIS302-P

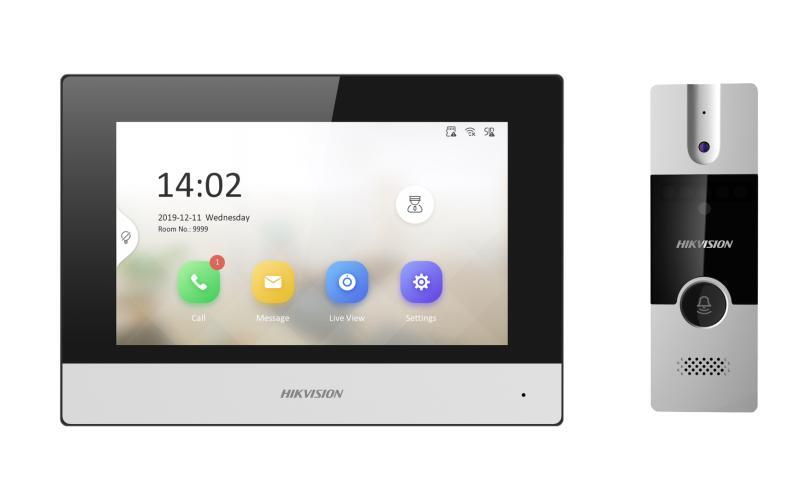

Hybrid Intercom Kit Hybrid Intercom Kit with 1 indoor station and 1 four-wire analog door station User-friendly control with a convenient touch screen Convenient management via the Hik-Connect mobile client More cost-effective options with analog doorbells Easy installation as the doorbell requires no exclusive power supply European power supply adaptor included (please mark for other standards when you order) Door Station/Video Parameters Resolution 1920 x 1080 FOV Horizontal: 66.2°，Vertical: 37.2° Door Station/Audio Parameters Audio Input Built-in omnidirectional microphone Audio Output Built-in loudspeaker Door Station/Device Interfaces I/O Output 1 relay output Four-Wire 1 for 4-wire interface Door Station/General Power Supply 12 VDC Power Consumption Max. 5 W Working Temperature -10° C to 55° C (14° F to 131° F) Working Humidity 10% to 90% Dimensions 135.14 mm × 49.6 mm × 41.93 mm (5.32" × 1.95" × 1.65") Indoor Station/System Parameters Operation System Embedded Linux operation system RAM 128 MB ROM 32 MB Indoor Station/Display Parameters Size 7-inch colorful TFT screen Operation Method Capacitive touch screen Type Colorful TFT screen Resolution 1024 × 600 Indoor Station/Video Parameter Resolution / Lens / WDR / FOV / Indoor Station/Audio Parameters Audio Input Built-in omnidirectional microphone Audio Output Built-in loudspeaker Audio Compression Rate 64 Kps Audio Compression Standard G.711 U G.711 A Volume Adjustment Adjustable Audio Quality Noise suppression and echo cancellation Indoor Station/Capacity Parameters Linked IPC Capacity 16 Notice Capacity 200 Linked Indoor Extensions Capacity 5 Linked Doorphone Capacity 2 analog doorphones, 15 IP doorphones Max. Indoor Station/Network Parameters Wired Network 10/100 Mbps self-adaptive Wi-Fi Wi-Fi 802.11 b/g/n 3G/4G / Bluetooth / Protocol TCP/IP, SIP, RTSP Indoor Station/Device Interfaces Network Interface 1 RJ-45 10/100 Mbps self-adaptive RS-485 1 Alarm Input 2-ch alarm inputs Alarm Output 2 Power Input 1, 12 VDC TAMPER / TF Card Max to 128 G, SD 2.0 or lower version USB Interface / Four-Wire Interface 2 Indoor Station/General Button 0 Power Supply IEEE802.3af, Standard PoE,12V DC Power Consumption ≤ 6 W Working Temperature -10 °C to 50 °C (14 °F to 122 °F) Working Humidity 10% to 90% Dimensions (W × H × D) 200 mm × 140 mm × 23.6 mm (7.9" × 5.5" × 0.9") Installation Surface mounting Application Environment Indoor Protective Level / Weight With package: 365 g Without package: 355 g
