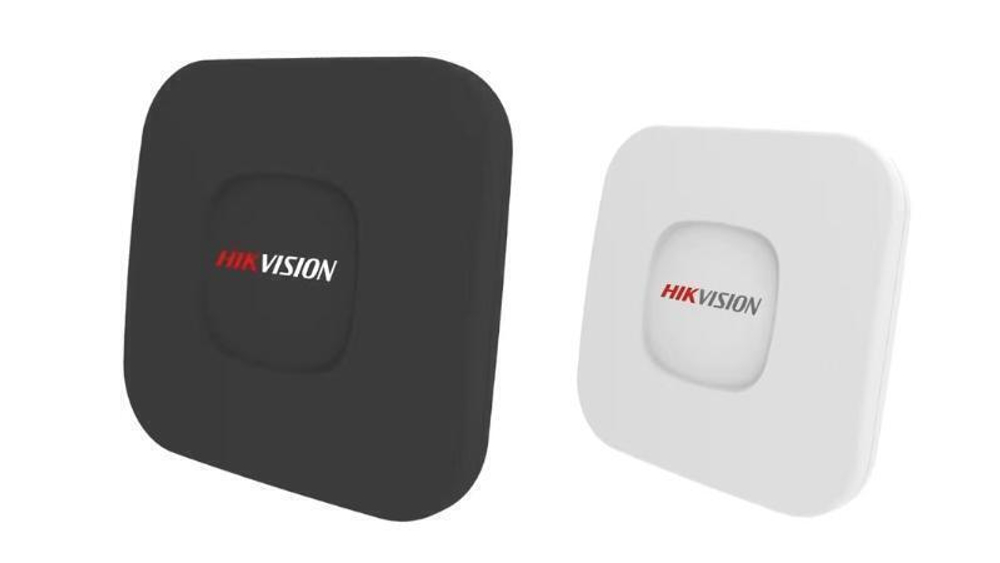

DS-3WF01C-2N

2.4Ghz 300Mbps 500m Elevator Wireless CPE Stable wireless transmission for elevator High throughput for more channels 500 m long transmission distance Easy configuration Compact design IEEE802.11 b/g/n(2T2R 300Mbps) Operation Frequency 2412 to 2472 MHz(More Non-standard channels is availability,2312MHz to 2732MHz) Antenna Internal, 6dBi, H: 65° V: 60° Max Output Power 27dBm Receive Sensitivity -72dBm@65Mbps, -97dBm@1Mbps Max Transmission Rate 11n: 300Mbps(HT40)/130Mbps(HT20) 11g: 54Mbps Hardware Power Supply 48V/0.25A PoE or 12 VDC Interface 3×10/100M Base-TX (Cat. 5/5E, RJ-45) ports Operation Temperature -30℃ to +65℃(-22℉ to +149℉) Storage Temperature -40℃ to +85℃(-40℉ to +185℉) Operation Humidity 5% to 95%RH non-condensing Dimensions 150×150×31.6 mm (5.9×5.9×1.24 inch) Software Application Scenarios Elevator Room/IP Camera Encryption WPA-PSK/WPA2-PSK Network Mode Router/Bridge Security IP/MAC filter, SSID hidden, Interface Isolation Network Protocol TCP/UDP/ARP/ICMP/DHCP/HTTP/NTP TDMA Supported (Extend private communication protocol) Auto ACK Timing Adjust Supported (It can automatically detect the distances of the devices, keep the performance always the best) Management And Logs NTP, Syslog, Telnet, AC Web Based Configuration Supported Firmware Update Support update firmware by Web page Bandwidth 20M/40MHz
